4K HD HEVC H.265 H264 IP SRT RTMP RTMPS to SDI HDMI CVBS VGA Audio Video Decoder for IP camera

$0.00 $400.00

4K HD HEVC H.265 H264 IP SRT RTMP RTMPS to SDI HDMI CVBS VGA Audio Video Decoder for IP camera

$0.00 $400.00
default: default
Description

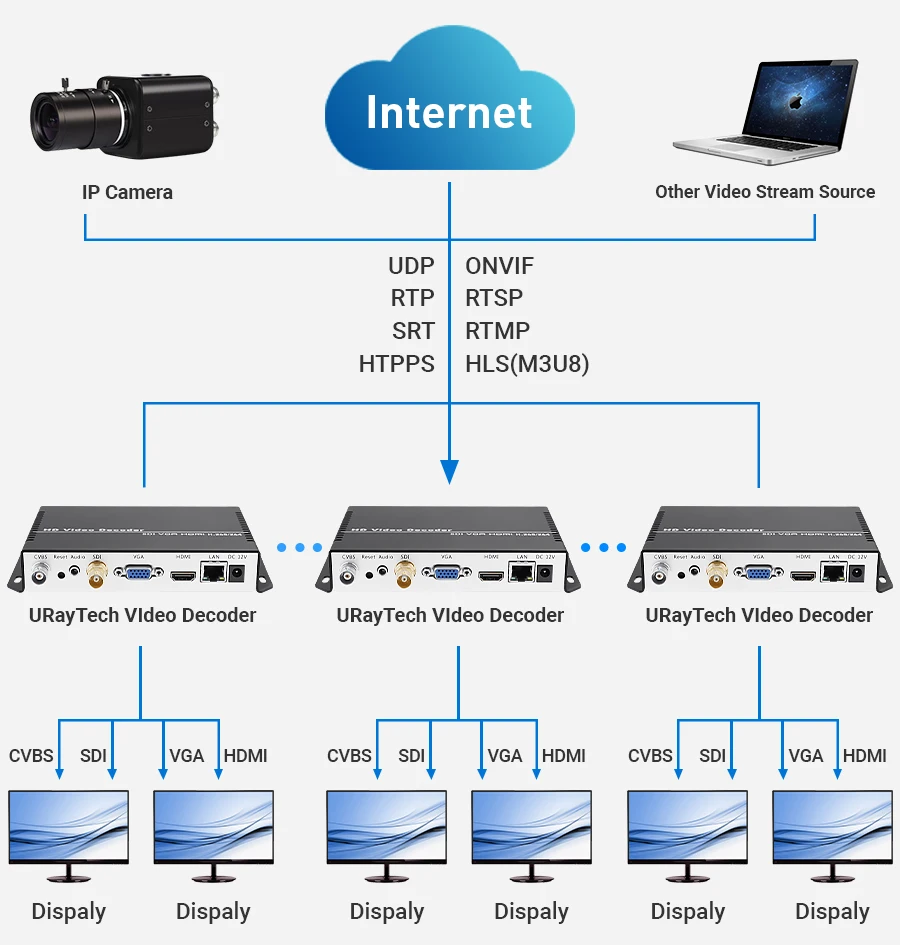

  • Support a variety types of video streaming address input and decoding

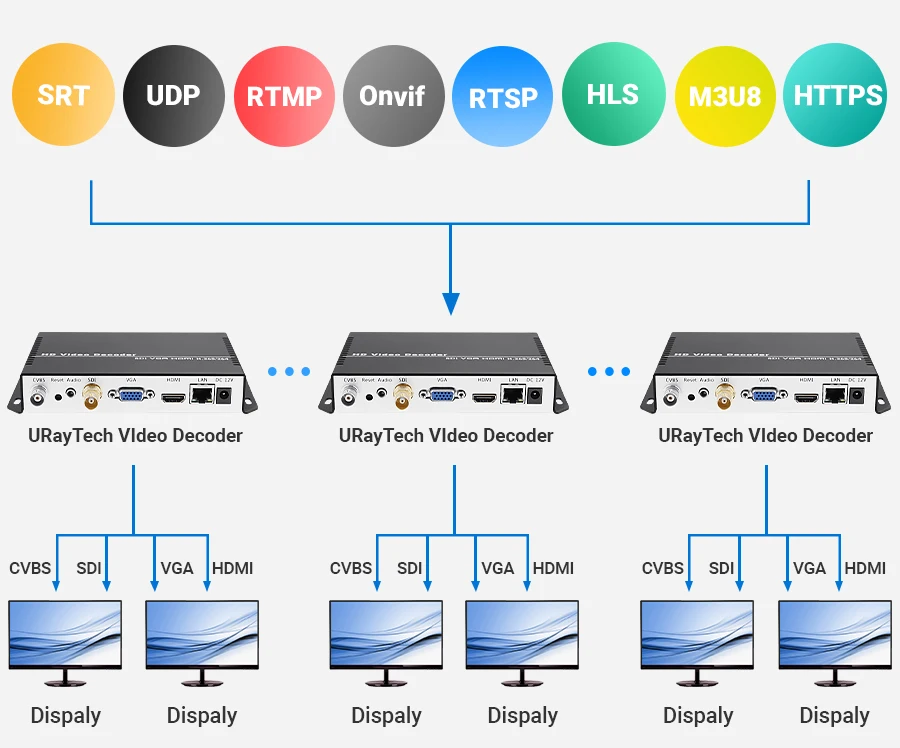

    Support a variety of output video interfaces, simultaneously outputs HDMI, CVBS, VGA, SDI


  • Max 4 channels of video streams can be input and decoded simultaneously

    Connect the decoder to the display and the decoded video can be played directly on the display


  • Support output video frame rate setting, max 60fps input and output

    Support output video resolution setting, max 3840x2160P input and output

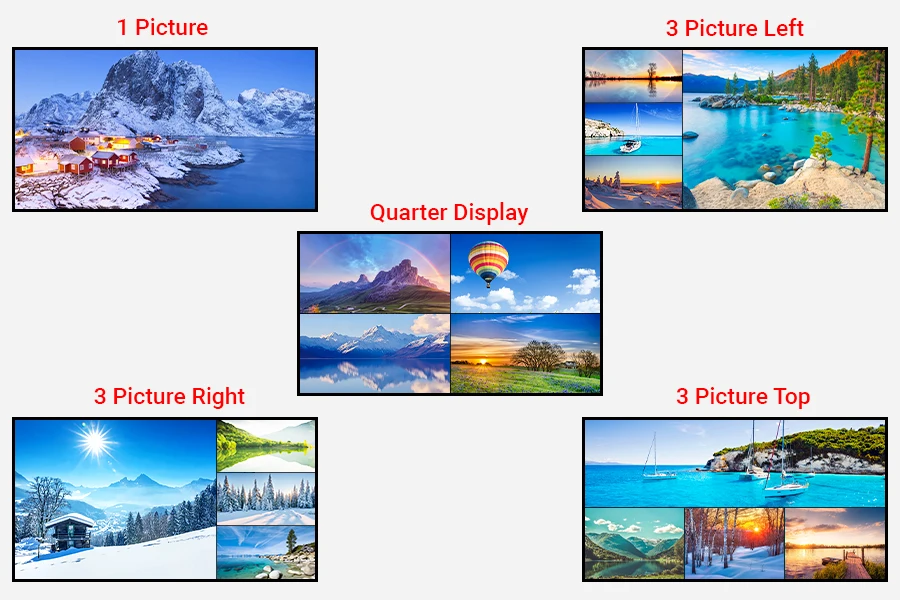

  • Support 6 display modes: 1P(single channel), 4P(quarter), 4P(3L1R), 4P(1L3R), 4P(3T1B), 4P(1T3B)

    You can adjust the display layout according to your need


  • Support multiple on screen display settings, such as logo /text /scroll text /time etc

    Support customize the no signal image when there is no input signal


  • Support resolution, color, brightness, contrast, saturation, crop, rotate, hue, scaling etc video settings

    Support wide area network remote management(via port forwarding)

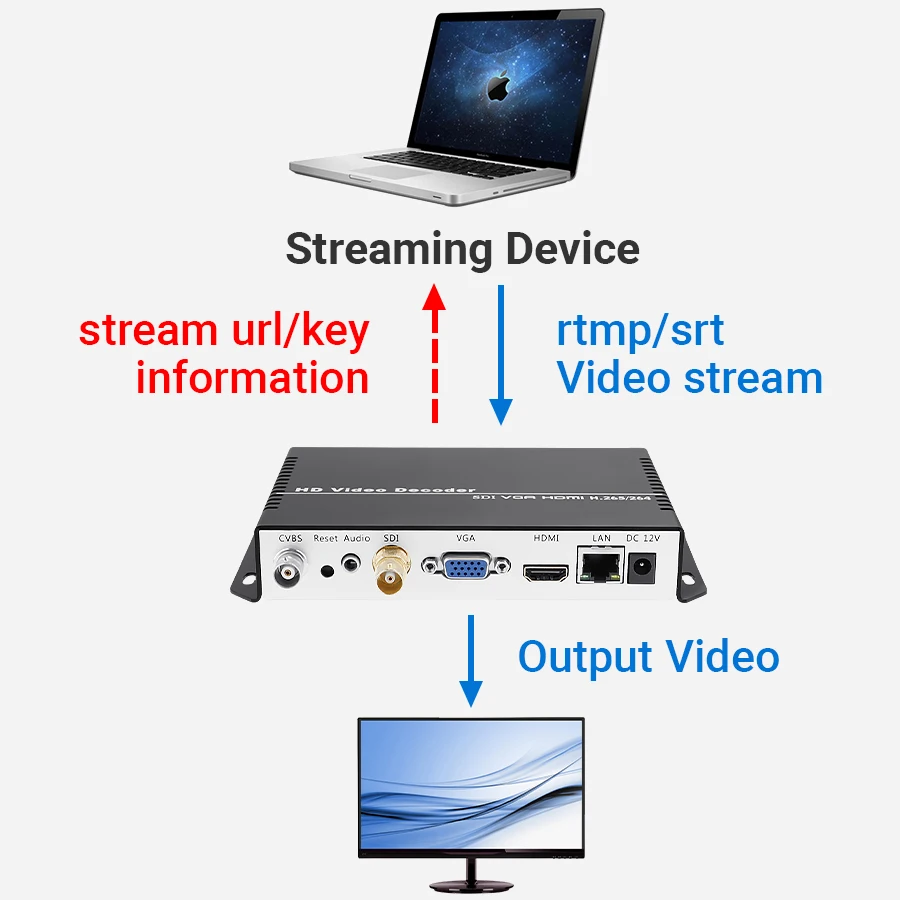

  • Receive SRT /RTMP streams pushed from other platforms and decode the stream, works like a server

    Support output video resolution setting, max 3840x2160P input and output


  • Provide SDK /API /CGI for secondary development

    Support logo printing /language /firmware /function etc customization


Model No.

UHSCVD265-1-4K

Video

Input

Video stream address (Max 4 channels)

Video Resolution

Max 3840X2160 input and output, output resolution is adjustable

Video Decoding

H.265, H.264

Output

SDI(audio build-in), HDMI(audio build-in), CVBS, VGA output simultaneously

OSD Setting

Support logo, text, scroll text etc on screen display settings

Video Processing

Resolution, Video Color, Brightness, Contrast, Saturation, Crop, Rotate, Hue, Scaling etc

Display Mode

1P, 4P(Quarter), 4P(3L1R), 4P(1L3R), 4P(3T1B), 4P(1T3B)

Frame Rate

Max 30fps when 4K input or output; Max 60fps when 1920x1080(or lower) input or output

Audio

Audio Decoding

AAC, AAC+, AAC++, MP3, MP2, AC3, G.711

Output Audio

SDI audio, HDMI audio, external audio(3.5mm jack) output simultaneously

Stereo Audio

From channel 1 to channel 4 for selection

Network

Interface

Ethernet port(1000 BASE-T)

Streaming Protocol

SRT, HTTPS, UDP, RTP, RTSP, RTMP, HLS(M3U8), ONVIF, FLV, Unitcast etc

Control Panel

Web page control, support wide area network remote management

Upgrade

Support upgrade the device by uploading new firmware

General

Dimension (W* L* H)

170 x 124 x 30 /mm

Weight

300g

Customization

Provide many kinds of OEM, such as logo, function, language etc

Power

DC 12V /1A

Material

Aluminum Shell





              Click here to check           Click here to check            Click here to check

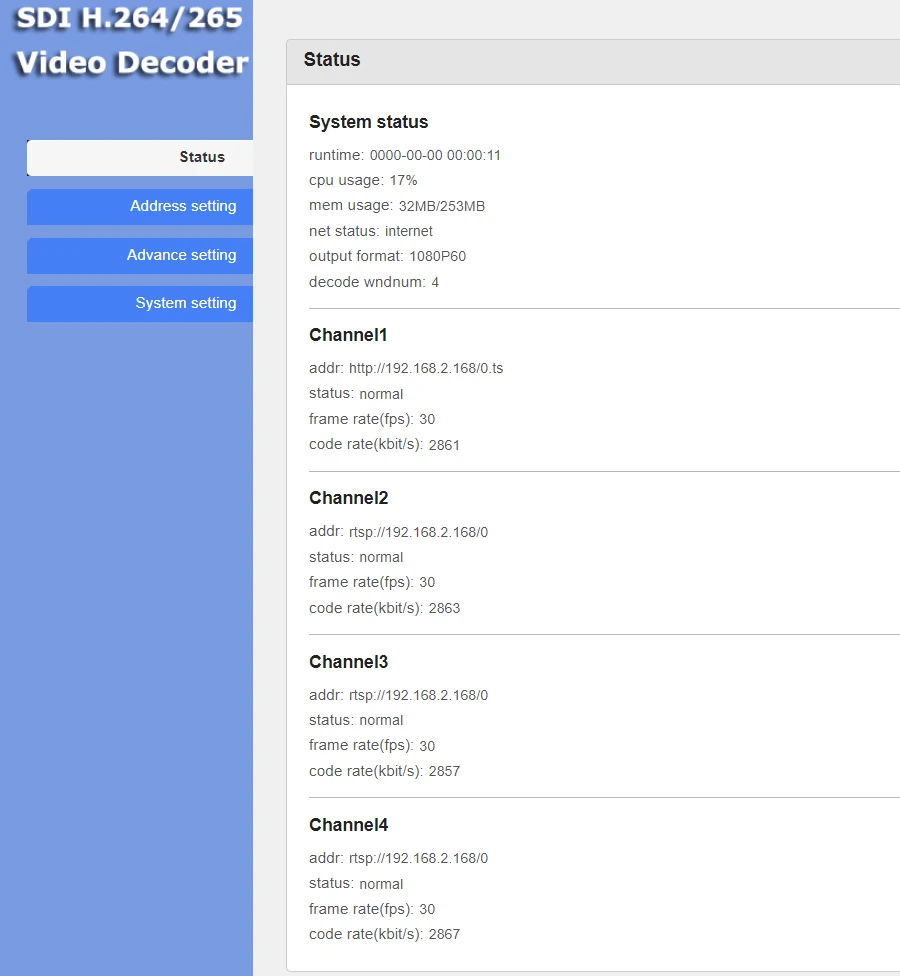

• Status Display


• Address Setting

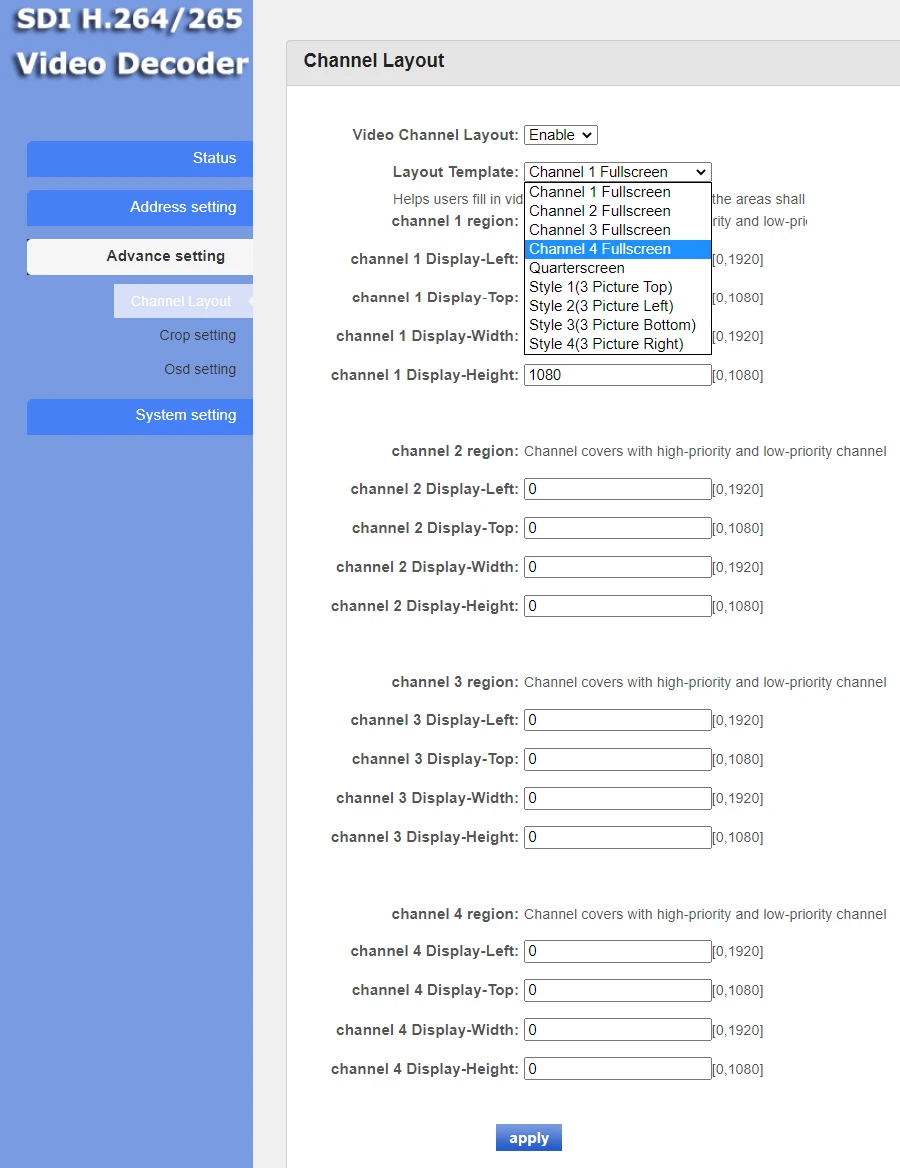

• Channel Layout


• Crop Setting


• OSD Setting

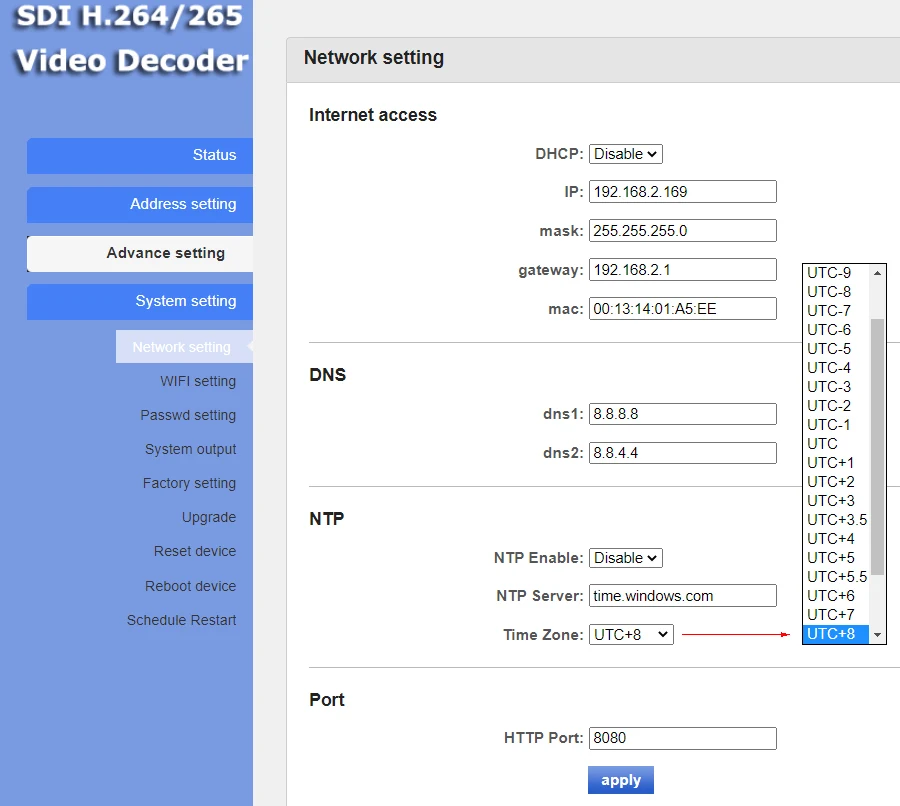

• Network Setting

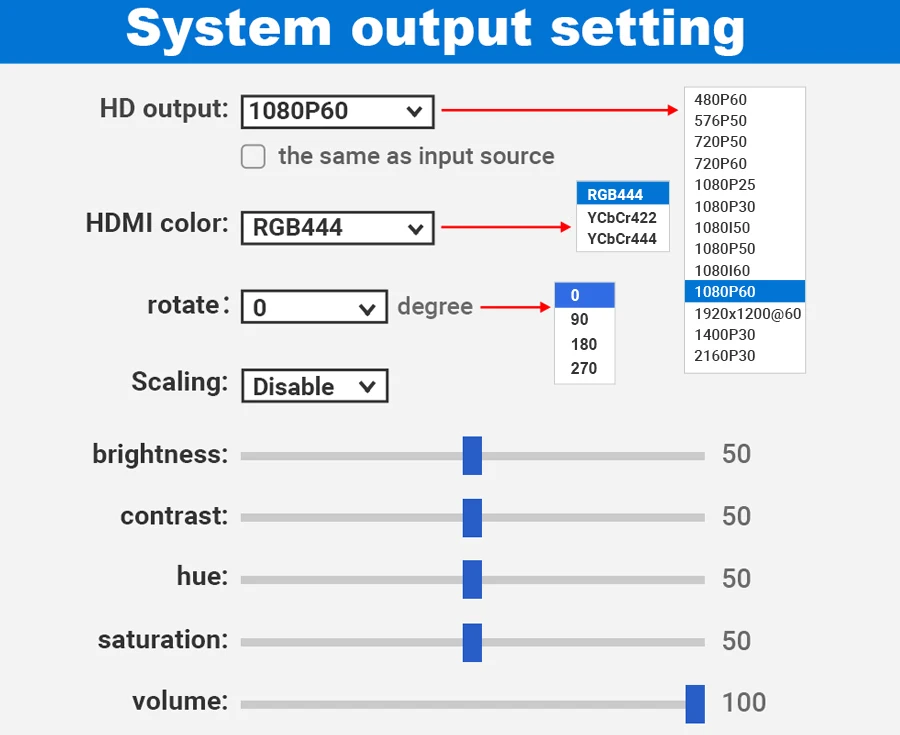

• System Output


• Factory Setting

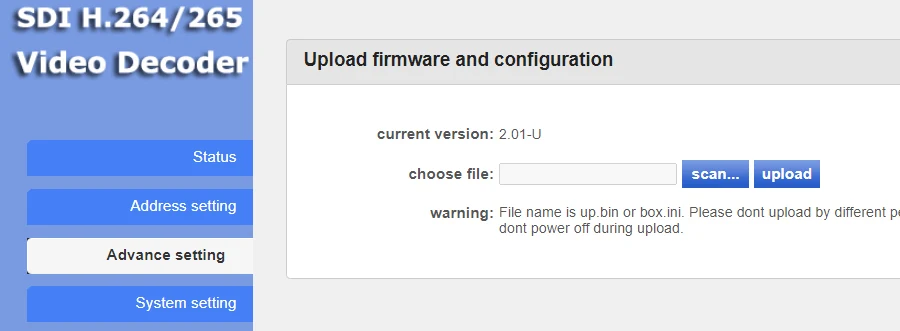

• Upgrade
